MACHINED IN THE USA
BORN IN CALIFORNia DESIGNED TO PERFORM
BUILT WITH PRECISION
MACHINED CHASSIS COMPONENTS
Utilizing the H10 molded bumper, fuel cell, and central dash brace the remaining components of the H10 Origin are machined in Sacramento, CA from US sourced aluminum and available in multiple anodized finishes. Each rear section has a serial number machined into it making every kit unique

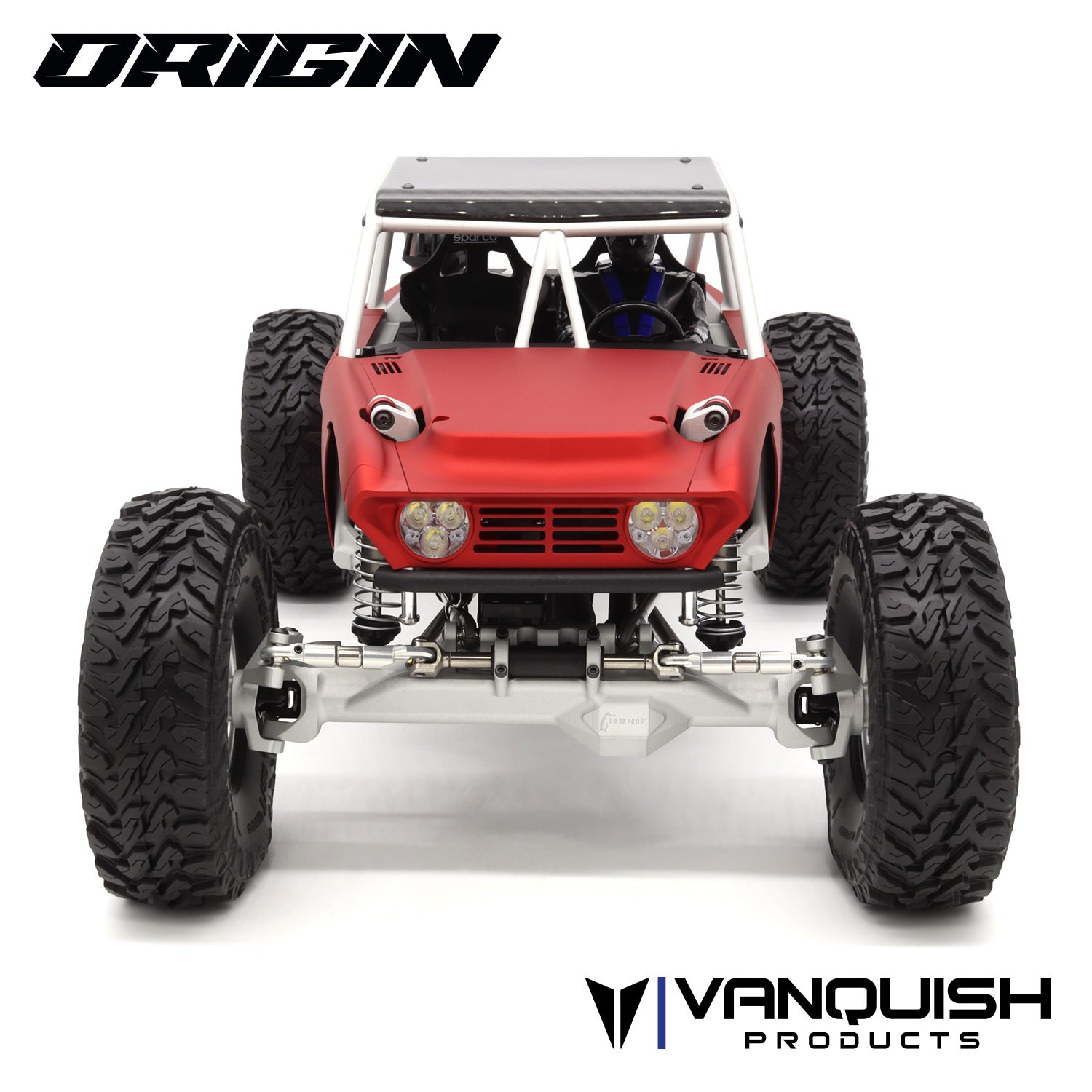

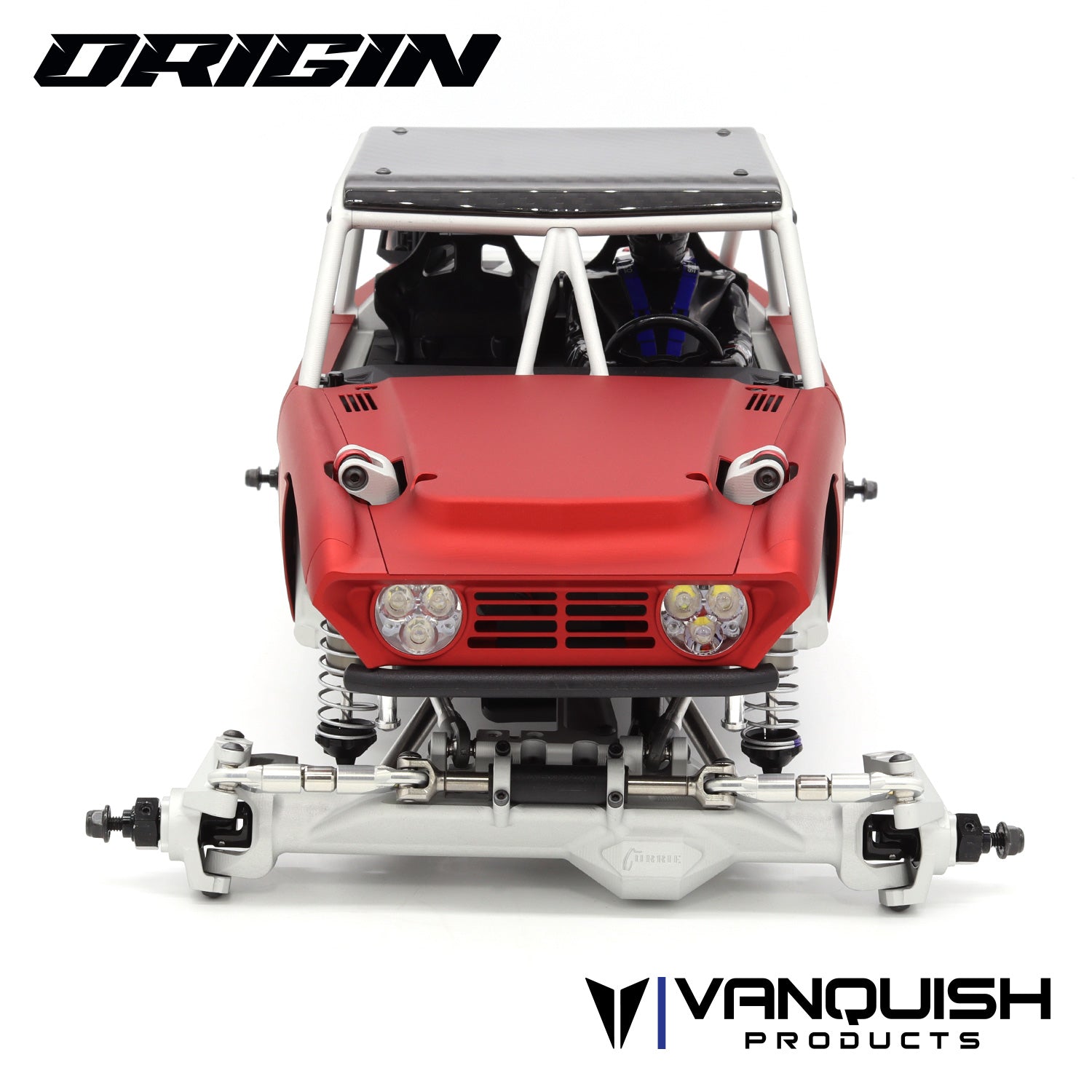

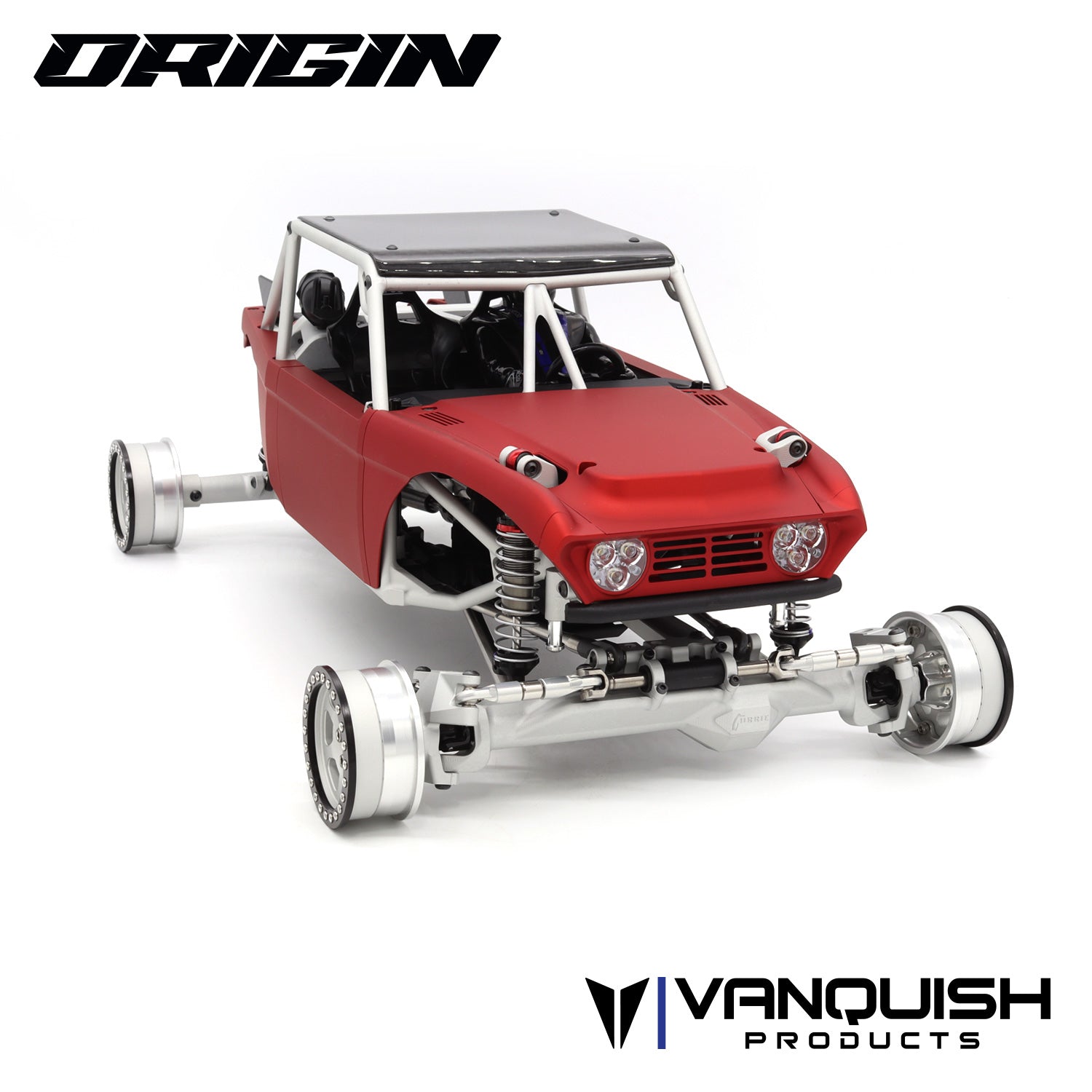

Aluminum H10 Front Axle
The H10 Origin includes a fully machined front axle with aluminum servo mount, third member front steering links and steering knuckles. Chromoly universals, machined axle gears, spool and hexes round out the final package.

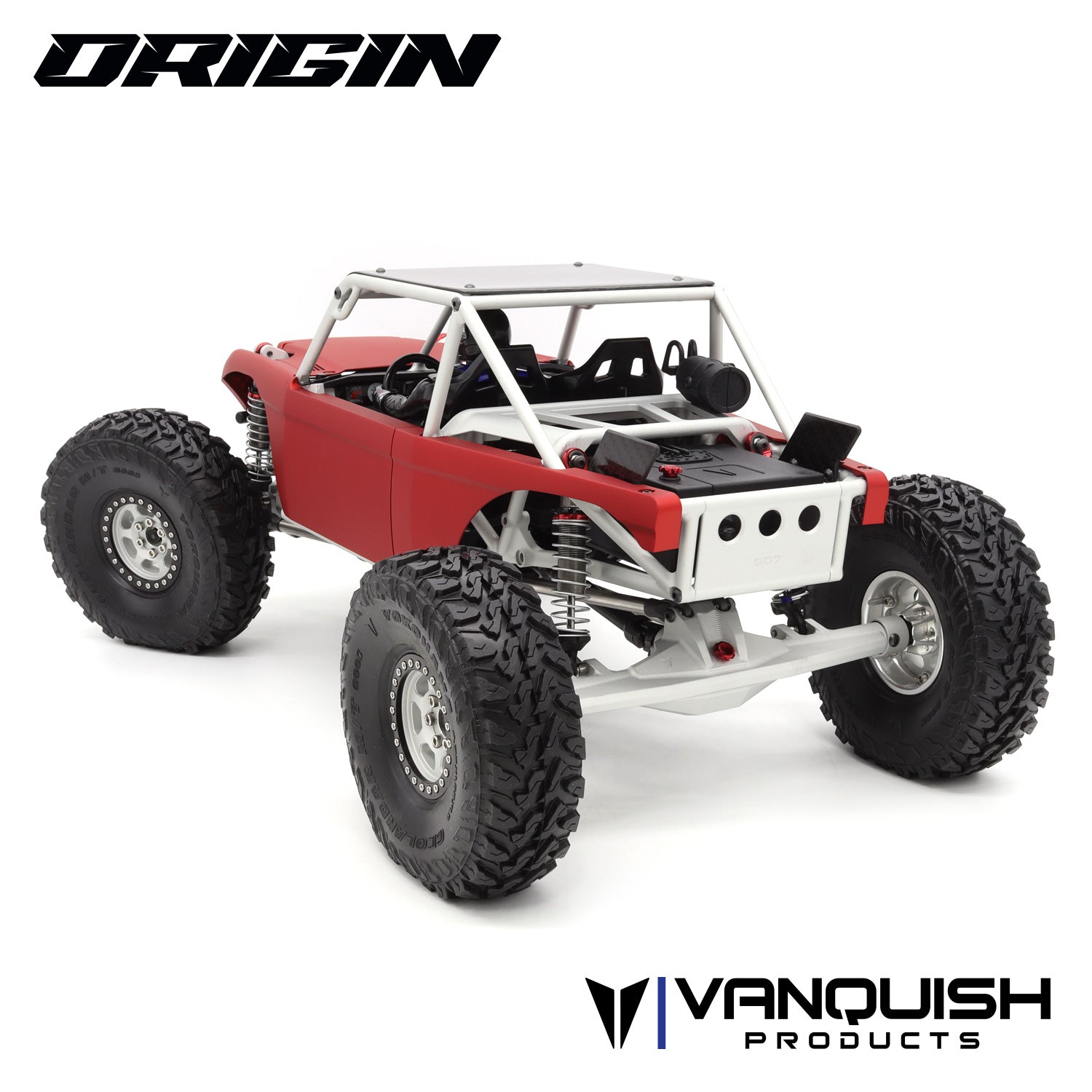

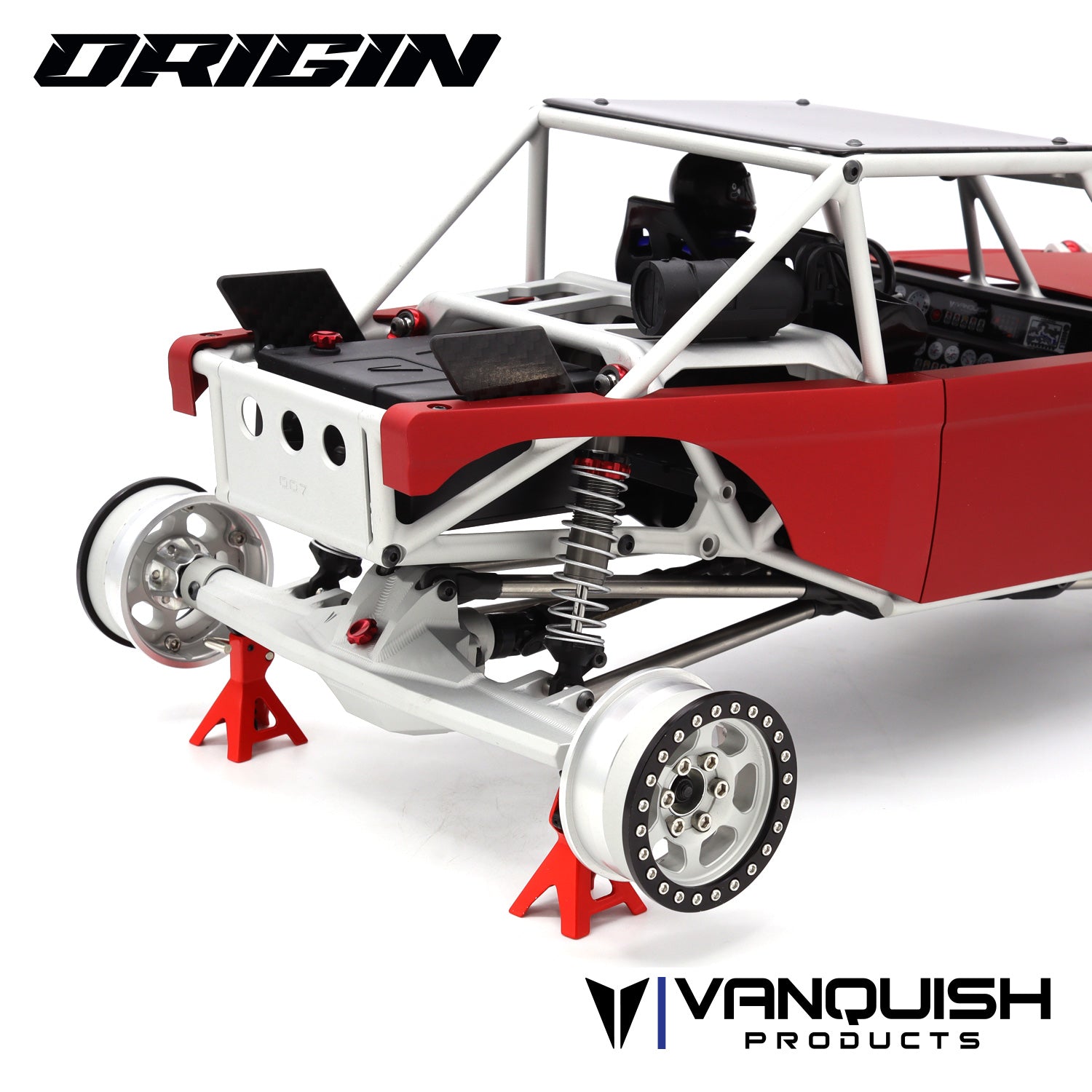

H10 ORIGIN SPECIAL PROJECT REAR AXLE
We brought back the scale welds for the H10 Origin. This H10 rear axle has rotated upper link mounts, new truss design and larger backbone. This axle is currently only available with the H10 Origin Kit
ORIGIN STYLING
The H10 Origin aluminum body panel styling mixes old school with modern. Hidden hardware on the front, rear, and door panels give a sleek scale appearance. Carbon Fiber roof panel as a reminder its built for performance.

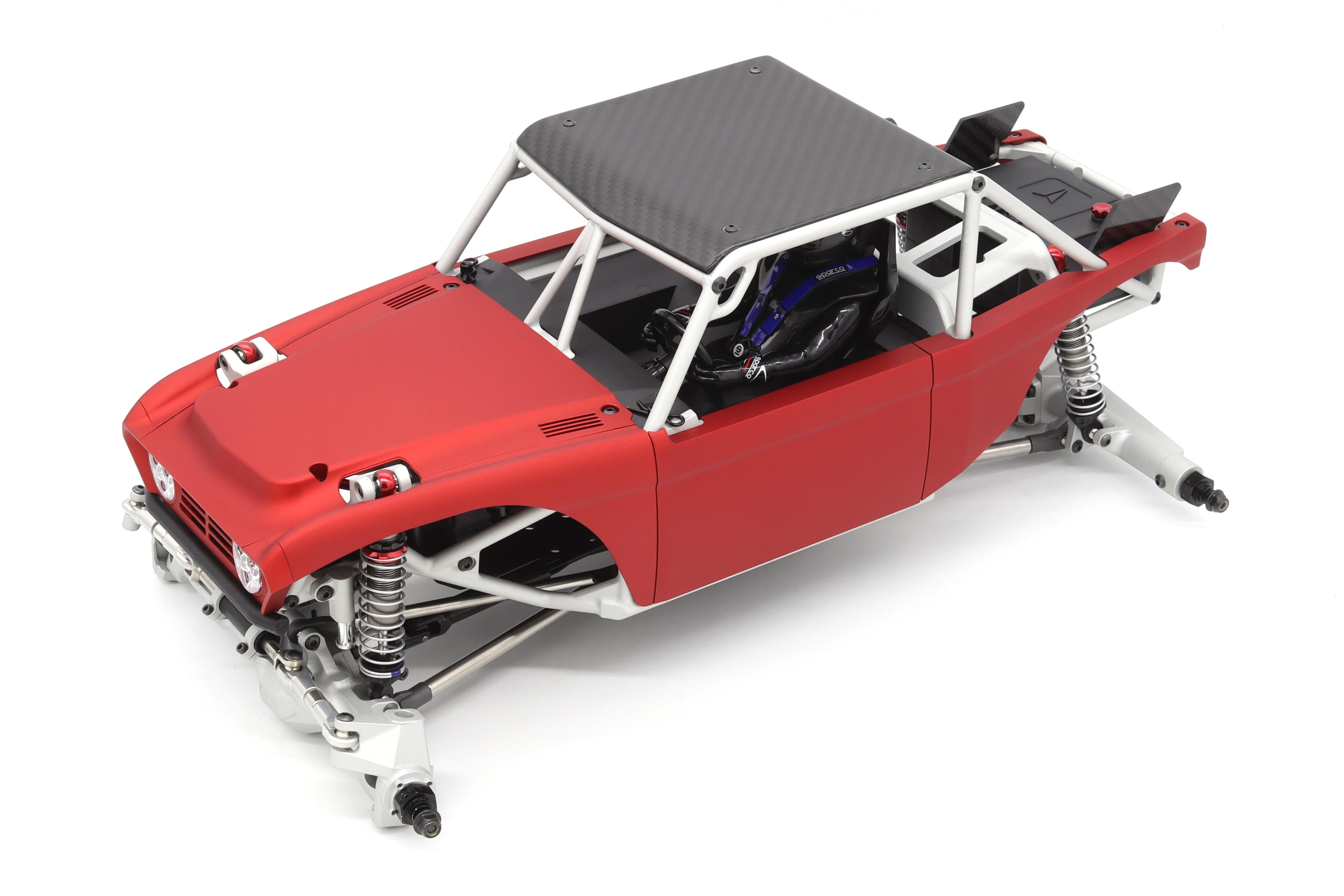

ORIGIN CHASSIS DETAILS

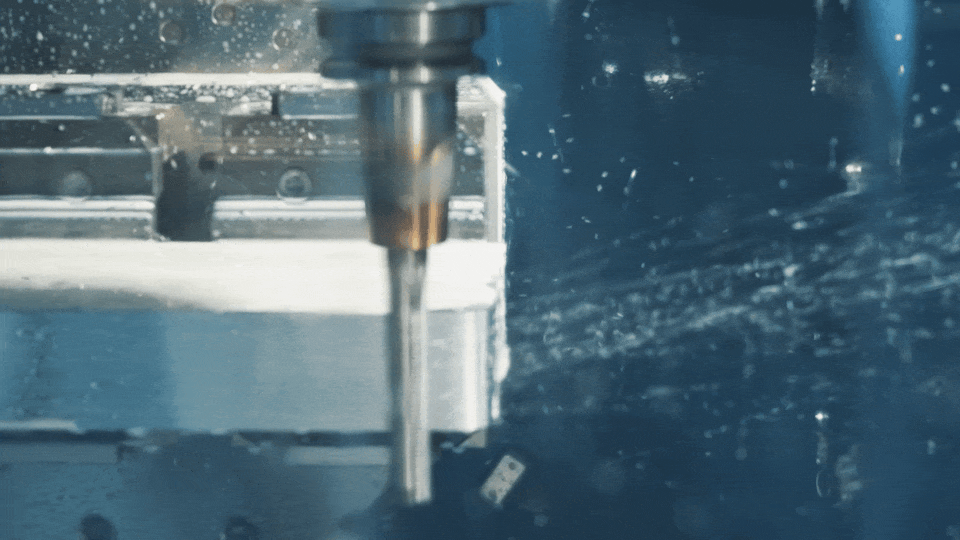

The machined H10 Origin chassis components are made in the USA with domestic produced aluminum and machined on Matsuura true 5-axis CNC machines. Designed around the H10 platform. Hidden body hardware and double shear front shock mounts make the H10 Origin truly unique.
Battery Compartment Size: 92mm x 36mm x 40mm
MACHINED ALUMINUM AND CARBON FIBER
Aluminum body panels incorporate the latch system that consists of carbon fiber plates and aluminum mounts. The access to your battery compartments couldn't be easier. A single pin gains you quick access while on the trail.

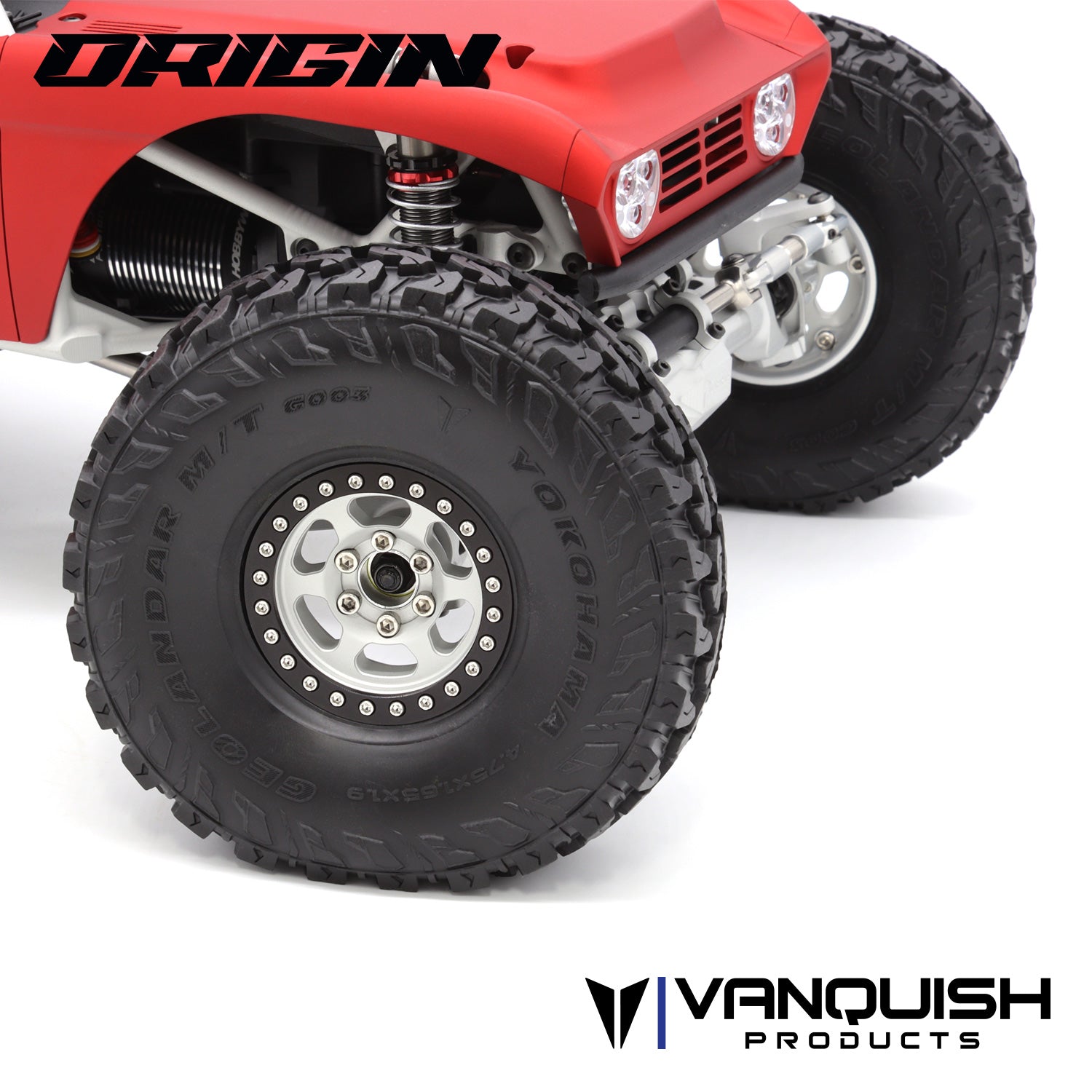

Battle Born Wheels 1.9 X-Ray Beadlocks
Designed in conjunction with Battle Born Wheels, the 1.9 X-Ray Beadlocks feature a classic look that matches the styling of the machined H10 Origin body. Battle Born Wheels is a veteran owned business who partnered with Vanquish Products in 2024.
H10 MACHINED CAGE AND BODY PANELS
MACHINED H10 AXLES
Newly Developed H10 Axles now machined from Aluminum for the ultimate in durability.
MACHINED BODY PANELS
The Origin body design is machined from solid aluminum giving the Origin a truly unique driving experience of a solid Trail Buggy with rigid body panels.
Q Series Headlights
The ultimate scale headlights. 630 lumens each at 12V.
SIDE PANEL SECURE BATTERY ACCESS
Quickly access your battery with the pin and latch side panel system. Easy to use and fully protected. Constructed with machined aluminum and carbon fiber elements.
Carbon Fiber Roof Panel
Real carbon fiber roof and winglets add strength, while reducing weight.

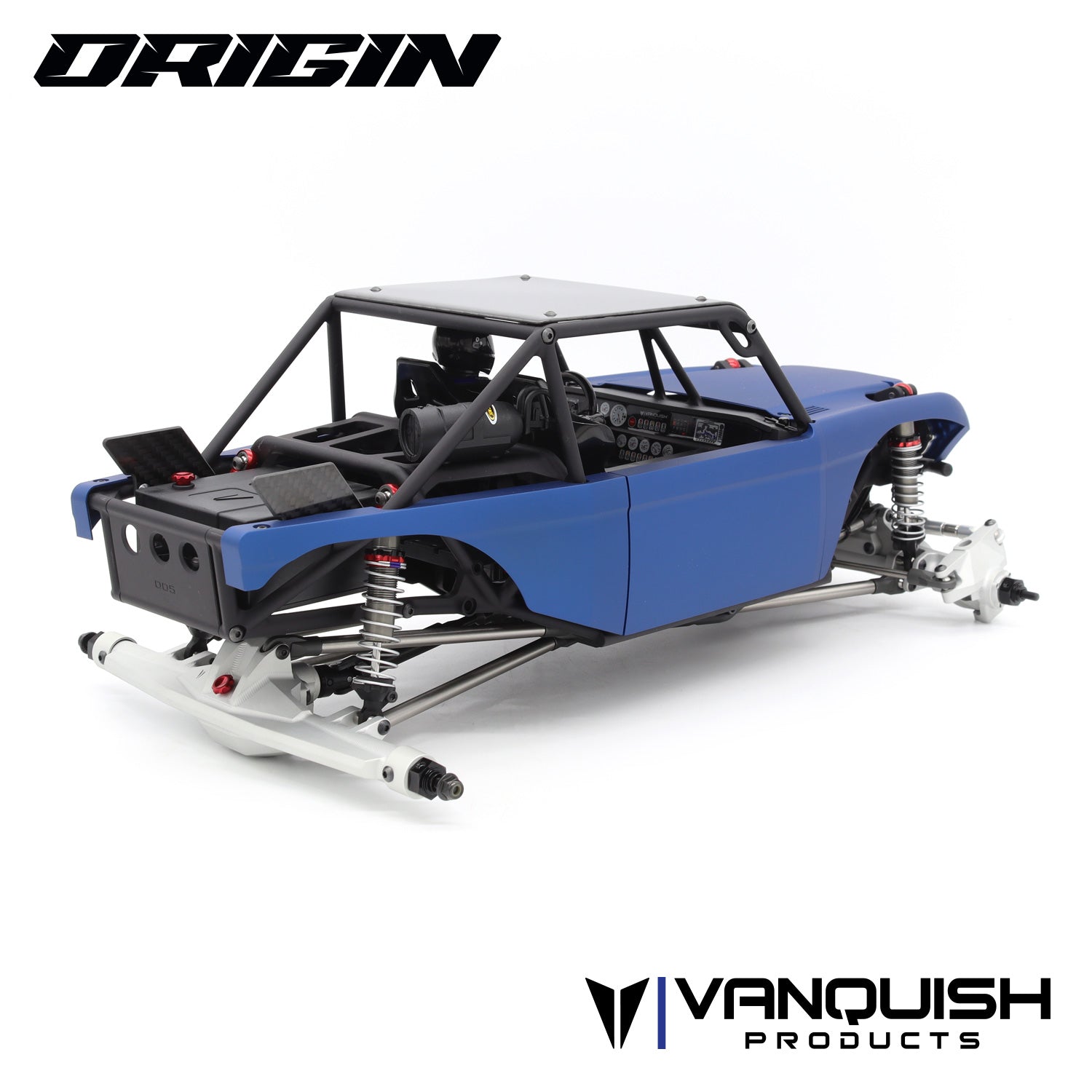

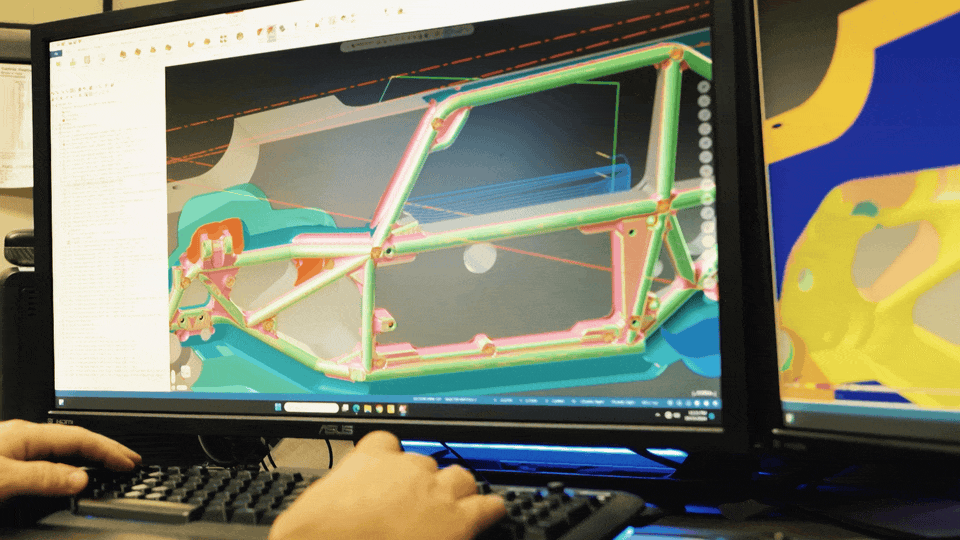

ORIGIN CAGE / CHASSIS

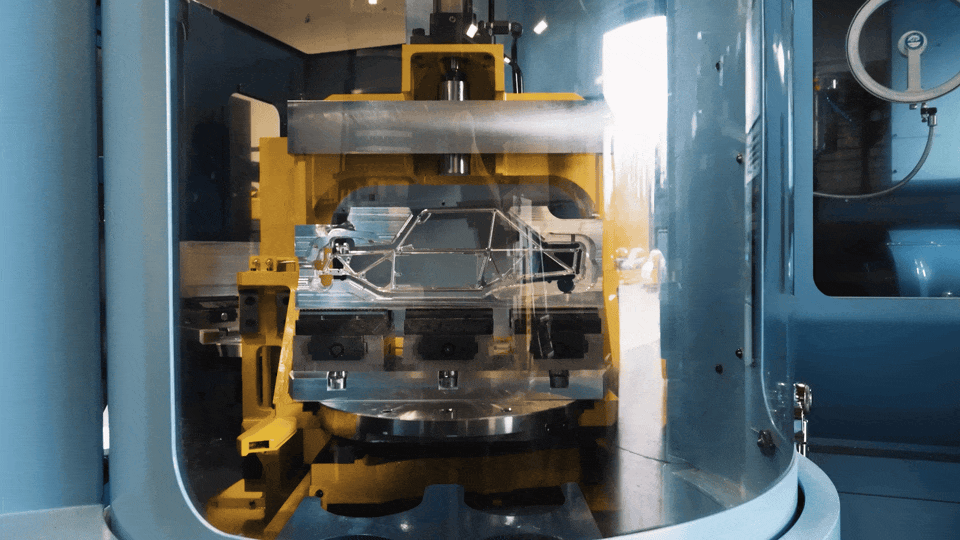

The H10 Origin Cage is machined from a solid block of Aluminum and designed to accept the machined body panels.
TRIANGULATED CAGE DESIGN
Like its full-size counterpart the Origin cage has been designed for strength and durability. Triangulated tubes for rigidity and predictable driving characteristics.
MOLDED 3D INTERIOR
To maximize detail and depth the interior has been molded from ABS in multiple parts.
MACHINED H10 AXLES
Newly Developed H10 Axles now machined from Aluminum for the ultimate in durability.
MACHINED BODY PANELS
The Origin body design is machined from solid aluminum giving the Origin a truly unique driving experience of a solid Trail Buggy with rigid body panels.
Q Series Headlights
The ultimate scale headlights. 630 lumens each at 12V.
SIDE PANEL SECURE BATTERY ACCESS
Quickly access your battery with the pin and latch side panel system. Easy to use and fully protected. Constructed with machined aluminum and carbon fiber elements.
Carbon Fiber Roof Panel
Real carbon fiber roof and winglets add strength, while reducing weight.
ORIGIN CAGE / CHASSIS
The H10 Origin Cage is machined from a solid block of Aluminum and designed to accept the machined body panels.
TRIANGULATED CAGE DESIGN
Like its full-size counterpart the Origin cage has been designed for strength and durability. Triangulated tubes for rigidity and predictable driving characteristics.
MOLDED 3D INTERIOR
To maximize detail and depth the interior has been molded from ABS in multiple parts.
Packed with the highest spec components
Machined S8E
For the first time in a Vanquish Products Kit, the S8E shocks include hard anodized shock bodies, aluminum shock caps and machined preload adjusters.
FUNCTIONAL BUMPSTOPS
Machined bumps stops mount to the H10 Origin cage and interact with the front axle as they reach the limits of their suspension travel.
Q-Series Headlights
These lights producing more light than one RC truck should ever need. The Q-Series headlights use an machined housing to dissipate the heat and a molded lens that focuses the beam for truly impressive performance.
Pro Spec VFD
The H10 Origin uses a VFD Transmission that is built will all the best option parts. Like the original VS4-10 Pro, H10 Origin includes an aluminum motorplate, aluminum standoffs, machined internal gears and aluminum bearing plates.
1/10th Scale
Axle Ratio 3.75:1
Pinion 15T 32P
Spur 56T 32P
Overall Width Hex to Hex - 206mm (8.11”)
Wheelbase - 337mm (13.26”)
Overall Height - 198mm (7.80”) w/4.75" Tires
Overall Front Ratio 41.3:1
Overall Rear Ratio 44.0:1
Final Overdrive 6%
Kit Weight (without battery) 5.5lbs (2.5kg)
Battery Compartment Size: 92mm x 36mm x 40mm
The H10 Origin Kit showcases the expertise and creativity that are central to Vanquish Products. Built on our years of experience in machining, manufacturing, and design, we present the ultimate RC car kit. The H10 Origin Kit can be built to drive , appreciate, or collect. It's a testament to our passion, abilities, and appreciation of our customers who have grown with us to desire such a product.
We took our most successful platform and turned it up to 11 with a completely new body design wrapped around specific H10 platform cage components. The cage components are machined from USA produced aluminum, designed in house and manufactured in Sacramento, CA. To make this a complete kit some components are sourced from our most trusted suppliers overseas with no expense spared for every component. The machined cage, body panels, wheels, axle housings and aluminum components are made here in the USA with pride.
This is a kit, assembly is required. You get to pick the colors of the cage, body panels, axles, and wheels. Due to the nature of this customization there is a 3 month lead time. Each kit will come with a unique serial number machined into the rear cage plate. See disclaimers below.
Included Items:
H10 Origin Chassis Includes:
- Machined Aluminum Chassis Sides
- Machined Aluminum Serialized Rear Chassis Brace
- Machined Aluminum Rear Shock Brace
- Machined Aluminum Windshield Brace
- Machined Aluminum Roof Brace
- Machined Aluminum Functional Bumpstops
- Molded interior
- Molded bumper, chassis braces, skid plate and fuel cell
H10 Origin Body Includes:
- Machined Aluminum Grille
- Machined Aluminum Hood
- Machined Aluminum Front Fenders
- Machined Aluminum Doors
- Machined Aluminum Rear Fenders
- Carbon Fiber Roof
- Carbon Fiber Rear Flags
- Carbon Fiber Battery Trays
- Aluminum Battery Door Latches
- Q-Series Headlights
- Q- Series Machined Aluminum Back Plate
- Machined Door Retention Pins
- H10 Origin Decal Sheet
H10 Origin Kit Contents:
- Machined H10 Front Axle Housing
- Machined H10 Rear Axle Housing*
- Machined H10/F10 Third Members
- Machined H10 Servo Mount
- Machined H10 Scale Knuckles*
- Battle Born Wheels X-Ray 1.9 Beadlocks and SLW Hubs*
- Machined Rod Ends and Links for front Hydro Style Steering linkages
- VFD Transmission - Pro Spec
- VFD Machined Motor Plate
- VFD Machined Gears
- VFD Machined Bearing Plates
- VFD Machined Standoffs
- Stainless Steel suspension links and Pro Rod Ends
- Incision Steel Driveshafts
- Machined axle gears and Chromoly Axle internals
- Hard Anodized Shock Bodies with Red Machined Caps and Collars
Disclaimer:
- Due to the nature of anodizing aluminum, the shade of color may vary
- Once ordered colors cannot be changed
- This is a kit, assembly is required. Cage comes partially assembled for packaging and presentation
- 3 month lead time for anodizing and packaging once order is placed
- Serial number selection is at random and cannot be requested
- Special Parts may be available at a later date
- Please note: This is an unassembled kit, tires/foams, and electronics are not included. Some product photos may show completed builds with wheels, tires, and electronics for demonstration purposes only.
Origin is a registered trademark of Vanquish Products. Unauthorized use of the trademark is strictly prohibited. All rights reserved.
- 540 Motor
- ESC
- Steering Servo
- Battery (Compartment Size: 92mm X 36mm X 40mm)
- Charger
- 1.9 Tires and Foams
- Receiver/Transmitter
- Q Series H10 Origin Headlights require wiring to a 12V source. Follow the included instruction sheet.
- Due to the nature of anodizing aluminum, the shade of color may vary
- Once ordered, colors cannot be changed
- This is a kit, assembly is required. Cage comes partially assembled for packaging and presentation
- 3 month lead time for anodizing and packaging once order is placed
- Serial number selection is at random and cannot be requested
- Special Parts may be available at a later date
Please note: This is an unassembled kit, tires/foams, and electronics are not included. Some product photos may show completed builds with wheels, tires, and electronics for demonstration purposes only.
