F10W-P Molded Axle Set

F10 WIDE PORTAL AXLES

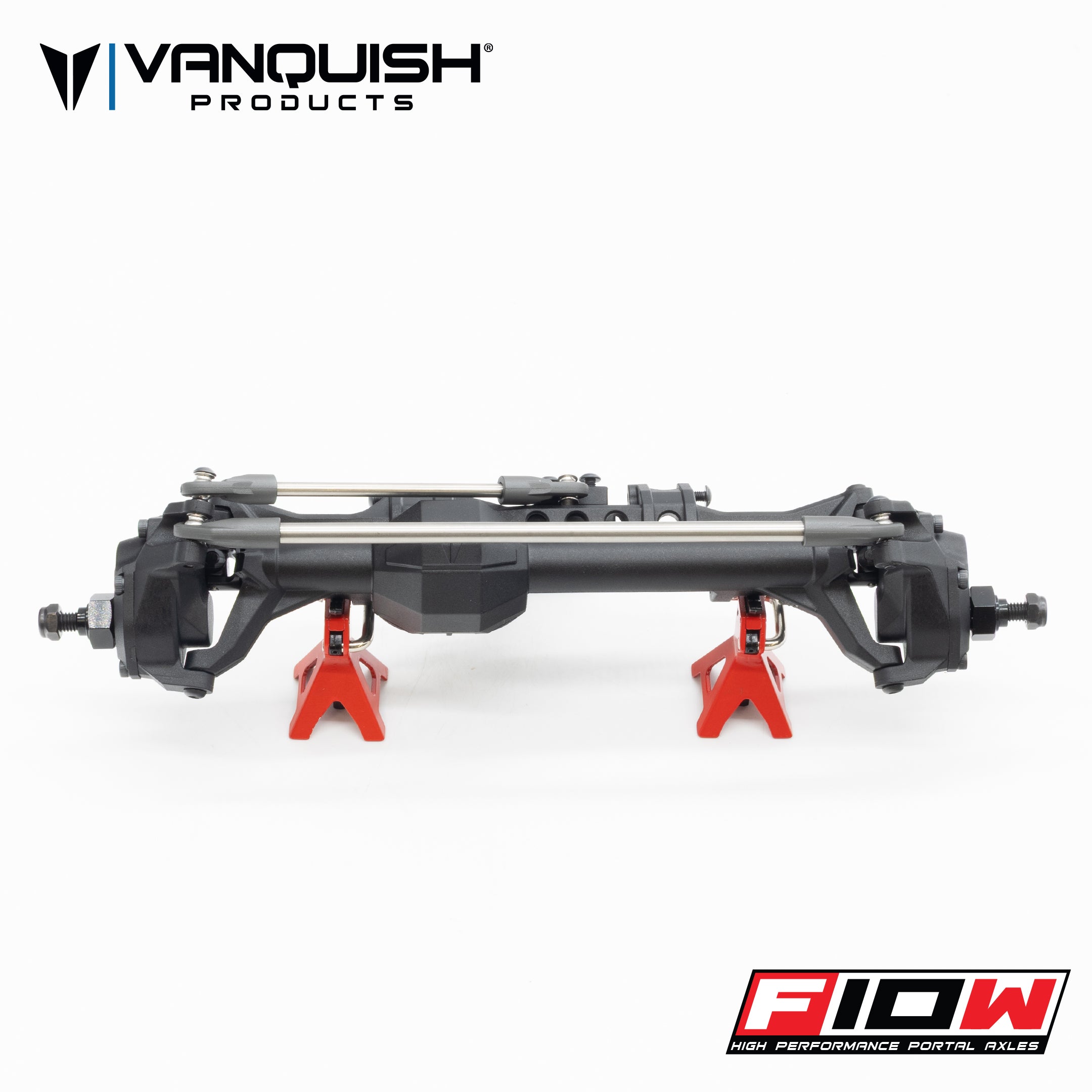

Designed to provide a wider track width while keeping the wheels tucked in for a favorable scrub radius, the F10W Portal Axles bring added stability to crawler and buggy builds, including four-wheel-steer setups like the URB. They measure 15.5 mm wider than our standard F10 Portals without sacrificing ground clearance.

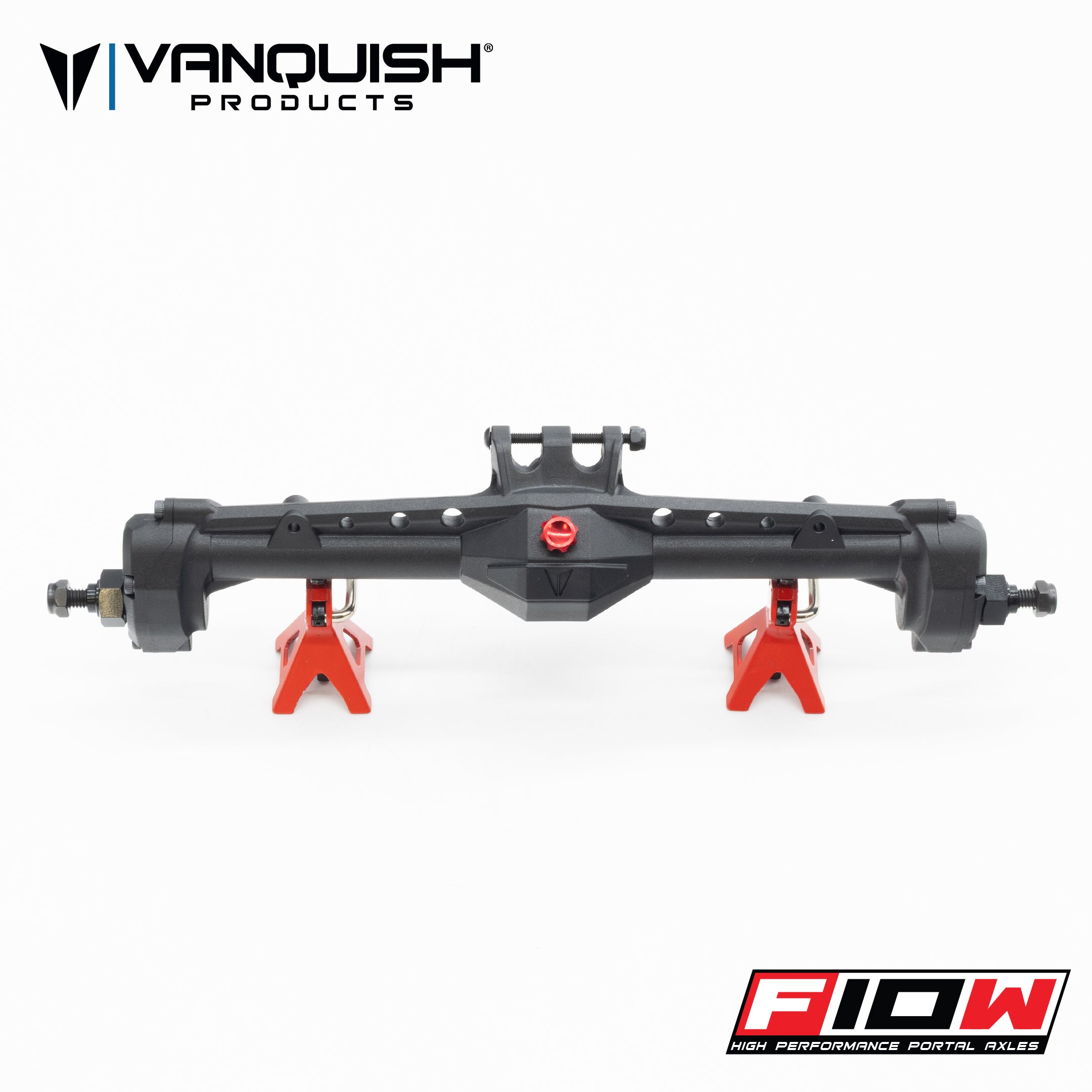

The front axle features a driver-side offset pumpkin to improve clearance and steering angle. The rear steering axle keeps the pumpkin on the same side as the front, making clearance over rocks more predictable and keeping driveline angles straighter. Its zero-caster design provides more stable rear steering. A non-steering rear axle with a centered pumpkin is also available.

A 28 mm servo horn is recommended for steering axle installations. Servo horn not included.

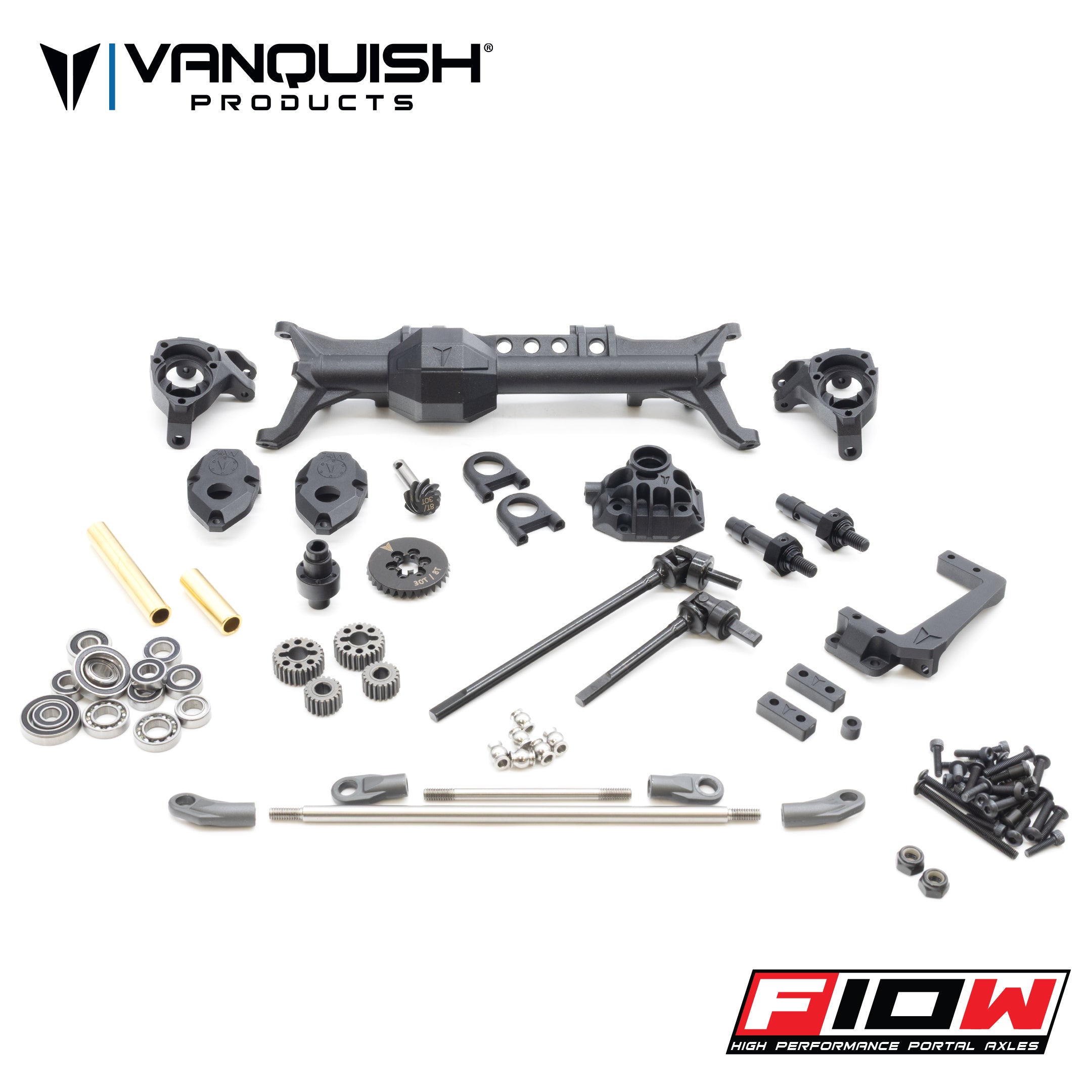

Axle Sets Include

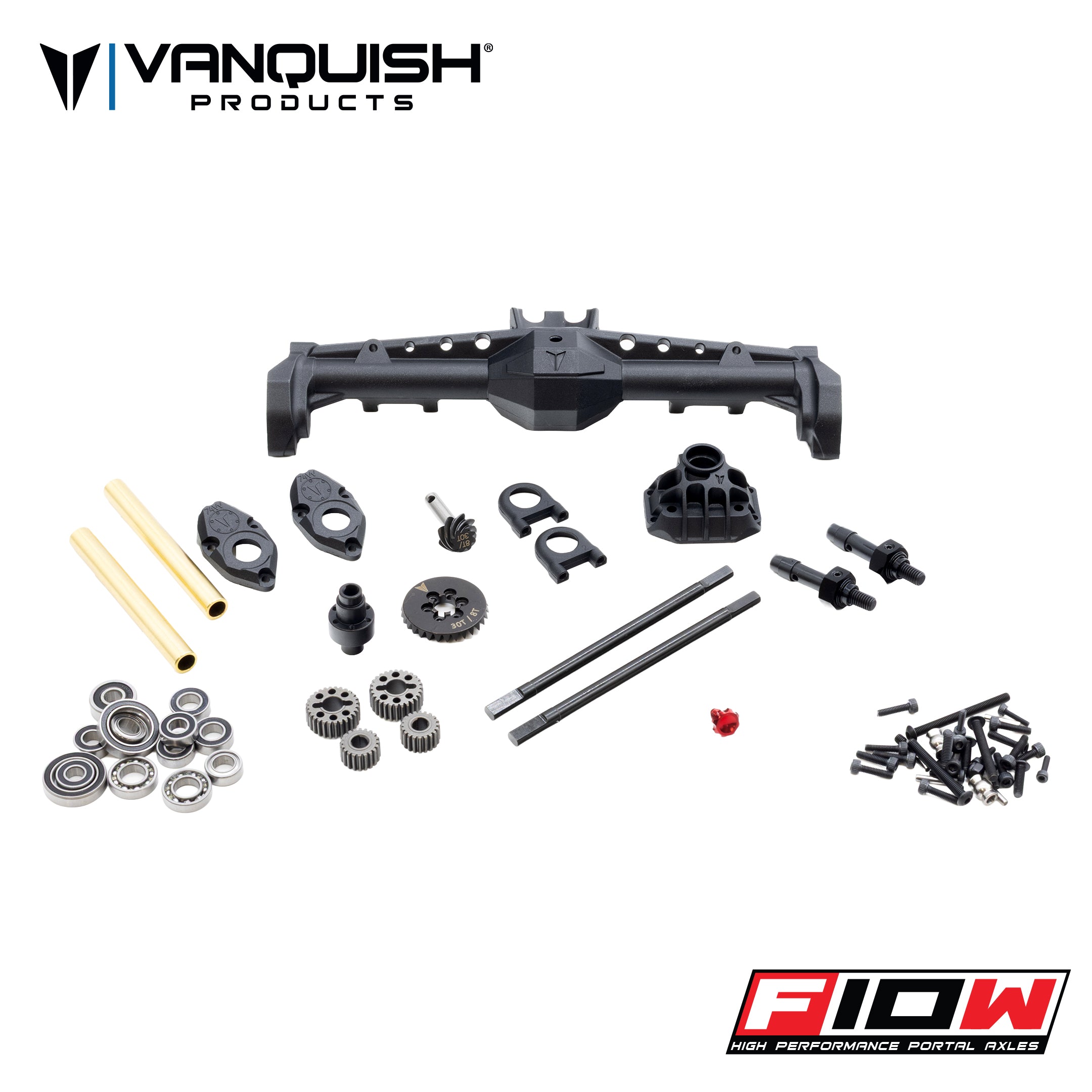

• Machined 8/30 Ring & Pinion
• Overdrive Portal Gear Set 20/28
• Brass Tubes
• Servo Mounts and hardware (Steering axles)

Front Steer Axle Specs VPS10567

• 5.25:1 Axle Ratio
• 18 Degrees of Caster
• 49 Degrees of steering
• Chromoly VDI Universals


Rear Steer Axle Specs VPS10568

• 5.25:1 Axle Ratio
• 0 Degrees of Caster
• 49 Degrees of steering
• Chromoly VDI Universals

Rear Non-Steer Axle Specs VPS10569

• 5.25:1 Axle Ratio

• 0 Degrees of steering
• Chromoly shafts

Notes:

• Direct replacement for VPS09029 URB
• For use in VS4-10 platforms it is recommended to use IRC00549 F10W-P Drag Link and Panhard for VS4-10
• For use in VRD platforms is is recommended to run a 106mm front lower link to correct castor (3mm longer)
• For use in VRD platforms it is recommended to use the +5mm shock rod end IRC00523
