5.25:1 Axle Gear Ratio

15T Pinion

52T Spur Gear

Overall Width Hex to Hex - 200mm (7.87”)

Wheelbase: 313mm (12.3")

Overall Front Ratio (Standard 6.5% OD): 53.7:1

Overall Front Ratio (High 46% OD): 35.8:1

Overall Rear Ratio: 57.2:1

VS4-10 BUILDERS KIT - PORTAL AXLE

Precision Engineering Meets Ultimate Performance

The VS4-10 Portal Axle Builders Kit is built for performance and durability, featuring the highest-spec VFD Twin transmission and F10 Portal Axles available in a kit. Designed for demanding terrain, this kit brings drivetrain innovations, exceptional ground clearance, and a low center of gravity to maximize control and capability.

Drivetrain

At the heart of the VS4-10 Portal Axle Builders kit is the VFD Twin transmission, an advanced system with Selectable Overdrive Shifting (6.5% to 46%) and a 3-position dig unit—all in a compact, efficient package. Machined internal gears, metal bearing plates, and a durable machined aluminum motorplate ensure lasting performance.

Power is transferred through ISD10 driveshafts, featuring machined CV-style joints for smooth and efficient operation. The F10 Portal Axles optimize clearance with a compact design while integrating machined hypoid gears, chromoly spools, and brass axle tube inserts for added strength and weight distribution.

Key Drivetrain Features:

• VFD Twin Transmission

• Machined Motorplate
• Machined VFD Front Gears
• Machined VFD Twin T-Case Gears
• Aluminum VFD Posts
• F10 Portal Axle Housings
• Machined Hypoid Axle Gears
• Machined Portal Gears
• Heavy Alloy Portal Knuckle Weights
• Brass Axle Tubes
• ISD10 Driveshafts

VFD Twin Transmission

The VFD Twin Transmission builds upon the proven VFD platform, integrating advanced drivetrain control with a focus on performance, durability, and scale realism. This system features Selectable Overdrive Shifting and a 3-position dig unit, providing real-time tuning for any terrain.

With on-the-fly overdrive shifting, drivers can toggle between 6.5% (standard) and 46% (high overdrive), dramatically changing the driving dynamics. The overdrive neutral position also allows for 2WD mode, disengaging the front output when needed. The integrated 3-position dig locks the rear axle for tight turns or full control on steep inclines, borrowing from Vanquish Products' proven Hurtz dig design for reliable, smooth operation.

Internally, the VFD Twin is built for durability with hardened chromoly shafts, machined internal gears, and bearing plates reinforcing critical load points. A slipper eliminator ensures maximum power transfer, while the molded transmission housing maintains a scale appearance. The extended skid plate provides added protection for the motor in rough terrain.

Compatible with 540 brushed and brushless motors*

• On the fly Selectable Overdrive
• Standard Overdrive 6.5%
• Selectable High Overdrive 46%
• Use Overdrive neutral position for 2WD (disengage front output)
• Dig with 3 Positions
• Slipper Eliminator
• Machined Internal Gears
• Hardened Chromoly Shafts
• Molded VFD Twin Extended Skid Plate for Motor Protection

• Sintered Shift arms with Brass pivot shift bushing
• Chromoly slide dogs for Overdrive and Dig shifting
• Scale Molded Transmission Housing
• Machined Bearing Plates
• Machined motor plate
• Molded Spur Gear Cover
• 32P 52T Spur and 15T Steel Pinion
• Silicone dust shields for shift arms***

F10 Portal Axles

The F10 Portal Axles are designed with a focus on durability, clearance, and smooth performance, leveraging Vanquish Products’ extensive experience in high-performance axle design. These axles feature a high-clearance portal configuration, reducing the size of the differential housing while maximizing ground clearance around the C-hubs and knuckles. This design improves obstacle clearance, minimizes hang-ups, and keeps your rig performing in technical terrain.

The rigid one-piece molded housings incorporate an integrated truss that strengthens the axle structure by tying both ends together. The high-pinion hypoid gear setup improves gear engagement, reduces driveline stress, and provides smoother power delivery.

For increased traction and stability, both front and rear axles include weighted brass tube inserts, while the front axle also features heavy alloy knuckle weights. This strategic weight placement lowers the center of gravity, improving climbing performance and reducing the risk of rollovers. The 49° of steering angle provides exceptional maneuverability, giving you tighter turning capability in challenging conditions.

Additional scale details include a removable third member, one-piece molded bearing retainers, and adjustable lower shock mounting positions for fine-tuning suspension geometry. The 6mm output shafts with M5 wheel nuts ensure durability and compatibility with a wide range of wheel setups.

• Molded Plastic Axle housings
• Universal Style Axle Shafts
• 49 Degrees of Steering
• High Caster reinforced C-Hub
• Heavy Alloy Portal Knuckle Weights
• High-Pinion Machined Hypoid Axle Gears (30/8)

• 6mm Output shafts with M5 wheel nut
• One-Piece Molded Bearing Retainers
• Adjustable Lower Shock Mounting Position
• Scale removable third member

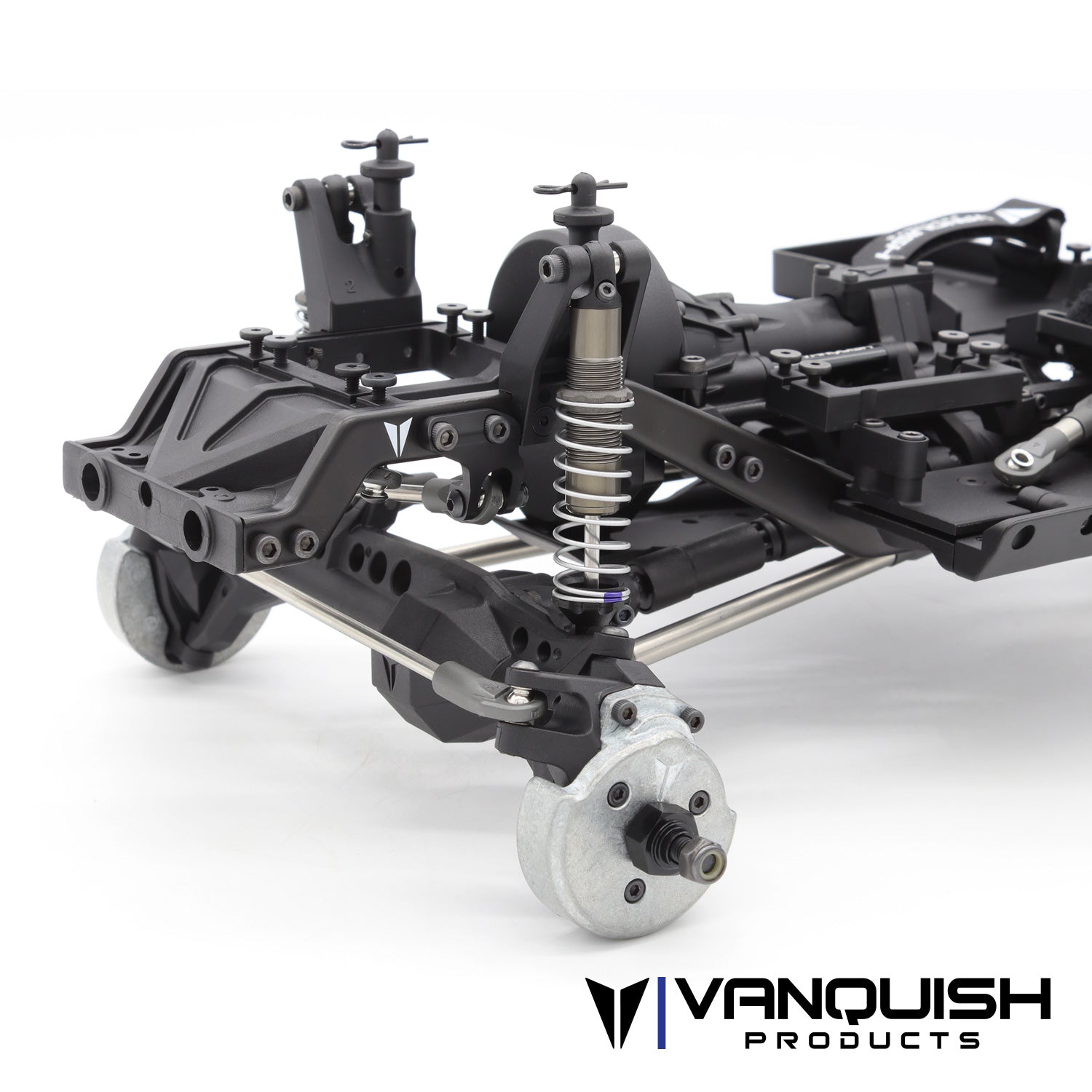

Chassis

The VS4-10 chassis is built for a balance of scale realism and high-performance durability, utilizing a heavy-duty steel C-channel frame that provides exceptional rigidity and strength. Designed to handle the demands of extreme terrain, this chassis maintains scale proportions while maximizing functionality for optimal handling and weight distribution.

Molded front and rear cross members reinforce high-stress areas, increasing structural integrity where it matters most. These cross members also incorporate dual servo mounting locations, integrated winch line routing, and a scale fuel cell, adding both versatility and realism to the design.

The rock sliders feature a modular, replaceable outer section, allowing easy adjustments to accommodate different body widths while also serving as a protective barrier against obstacles. This ensures a precise fit for a wide range of body styles without sacrificing durability.

The aluminum panhard mount provides reliable steering geometry, keeping suspension movement controlled and predictable. Molded shock towers hold the 80mm Incision S8E shocks in a double shear configuration, ensuring maximum support and durability under extreme driving conditions.

• Heavy Duty High Clearance Steel C-Channel Frame Rails
• Integrated battery tray and electronic mounting positions

• Stainless Steel links


Suspension

Equipped with Incision 80mm S8E shocks, the VS4-10 delivers smooth suspension articulation with hard-anodized aluminum shock bodies, dual X-ring seals, and keyed spring cups. The 3-link front suspension with panhard keeps the servo hidden for scale realism without sacrificing suspension travel.

• SC8E Incision 80mm Shocks with bleeder screw shock cap
• Hard Anodized Aluminum Shock Bodies
• Stainless Steel Links
• Stainless Steel Pivot Balls
• Stainless Steel offset lower shock pivot balls for tuning shock width at axle

Includes

• Threadlock
• Grease
• 30wt Shock Oil
• 7mm to 8mm thin wall wheel nut adapter tool

Specifications

• 1/10th Scale


• 5.25:1 Axle Gear Ratio
• 15T Pinion
• 52T Spur Gear
• Overall Width Hex to Hex - 200mm (7.87”)

• Wheelbase: 313mm (12.3")
• Overall Front Ratio (Standard 6.5% OD): 53.7:1
• Overall Front Ratio (High 46% OD): 35.8:1
• Overall Rear Ratio: 57.2:1

Required Electronics

• ESC
• 540 Motor
• Steering Servo (Vanquish 20mm servo horn included)
• Battery
• Transmitter and Receiver

Additional Electronics for VFD Twin Functionality

• X2 Standard size servos for Dig and Selectable Overdrive (Standard or Low Profile)
• X2 24mm servo horns
• 4 Channel Transmitter and Receiver

Other Required Items to Complete

• Tools
• Paint
• Body
• 1.9 Tires (Recommended)
• 1.9 Wheels (Recommended)
• Battery
• Charger

*Fits most 540 brushed and brushless motors

*** Transmission dust shield is not 100% element proof.  Use access cover to regularly check transmission for debris and add grease as needed.
